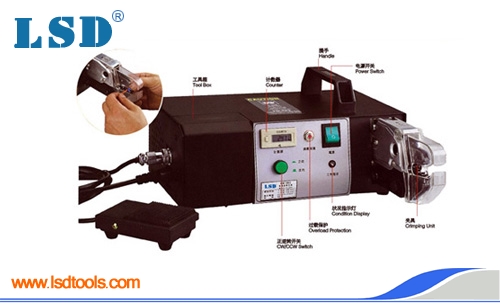

◇Type EM-6B2 is an ideal crimper for connection in cabinet ,It is applicable for pre-insulated terminal crimping from 0.25mm2 to 10mmm2 and Cu/Al cutting in 7mmmll. It is supplied with seven kinds of accurate and replaceable die stes . The crimper has high working efficiency and wide application.
◇The crimping tools is used for non-welding and standard electrical connection ,The mould of the crimping moth is made of SCM-40 hardest tools steel , it is with the characteristics of long life , accurate bore diameter and good crimping effect. |
| Specification |
Model
|
EM-6B1 |
EM-6B2 |
| Output |
12.7KN |
12.7KN |
| Max. Crimping Force |
5.5mm2 |
5.5mm2 |
| Crimping Time |
1.5s(60HZ) |
1.5s(60HZ) |
| 1.8s(60HZ) |
1.8s(60HZ) |
| Volts |
AC100-125V |
AC100-125V |
| Power Consumption |
90W |
90W |
| Dimension |
325X265X150(mm) |
325X265X150(mm) |
| Weight |
12kg |
12kg |
| type of Applicable Crimping Tools |
| Model Scope |
Terminal |
|
AWG DIN |
| LS-03C |
20-10 |
05-6 |
Insulated terminal |
| LS-10 |
18-10 |
1.5-6 |
Non-insulated terminal |
| LS-101 |
18-8 |
1.5-10 |
Non-insulated terminal |
| LS-04WFL |
20-12 |
0.85-4 |
Wire-end Ferules |
| LS-03B |
18-10 |
1.5-6 |
Non-insulated tabs and eceptacles |
| C-C7 |
CU/AL DIA.7mm of below |
Cutting Terminal |
| LS-02H |
 |
|
|
|
|
|
| |
6.5mm |
5.4mm |
|
1.72mm |
|
| 55,58,59,62,140,142,223,303,400, Fiber Optic , Belden 82974 |
